PetClinic — an Agentic Engineering Playground

A full-stack PetClinic (Angular SPA + Spring Boot REST API). The domain is incidental — this repo exists to demonstrate AI-assisted / agentic software engineering techniques you can lift into your own projects.

What this repo teaches

• Living kept in sync architecture, kept honest by guardrail tests. Diagrams and specs are generated from the code; ArchUnit + extractor tests fail the build when code and diagram drift apart. See GUARDRAILS.md.
• Snapshot now, diff at review. Committed diagrams stay a clean picture of current reality; the red add/remove delta is computed on demand from two git snapshots (puml-diff), when a human asks for it — see /human-review.
• Diagrams generated from code, rendered from source. .puml files are committed and rendered live via the PlantUML proxy straight off GitHub raw — no build step to view them; each render carries a footer naming its own source (see Architecture diagrams).
• C4 model as versioned Structurizr DSL: stable, human C1/C2 + a code-coupled C3 that is unit-tested against the real packages.
• E2E traces → sequence diagrams. Tempo/OpenTelemetry spans from a browser run are replayed into a PlantUML sequence diagram.
• MCP server hosted by the backend at /mcp (Spring AI) — tools/resources an agent can call.
• Code-first OpenAPI. The spec is extracted from the controllers (OpenApiExtractorTest → openapi.yaml); the frontend’s TS types are regenerated from it. Both drift-checked.
• Hooks + CI backstop + CODEOWNERS. Guardrail hooks run before every push, mirrored as unavoidable CI gates (blocking --no-verify), and compare regenerated content — not file paths — so they can’t be gamed; sensitive files need elder review.
• Observability. Zero-code OpenTelemetry → Grafana LGTM, queryable from Claude Code via mcp-grafana.

For example, this domain class diagram is generated from the code by DomainModelExtractorTest and rendered live from the committed DomainModel.puml — see Architecture diagrams for the rest:

Quickstart

A) Tell your agent: start db,be,fe,grafana

B) Manual: Run in separate terminals:

./start-database.sh   # ⇒ embedded Postgres        :5432
./start-backend.sh    # ⇒ Spring Boot (+OTel, MCP)  :8080
./start-frontend.sh   # ⇒ Angular dev server        :4200
./start-grafana.sh   # ⇒ :3300 (Requires Docker)

No Docker? ./start-tempo.sh instead of ./start-grafana.sh — Tempo alone (one downloaded binary, :3200 + OTLP :4318): no dashboards, but everything the sequence diagrams need.

• App UI: http://localhost:4200
• Backend Swagger: http://localhost:8080/swagger-ui.html

Prompts to try

Tell an agent running in this repo:

Agent Tasks

• Trim boilerplate from .md — remove from AGENTS.md the mvn/npm instructions any LLM already knows.
• AGENTS.md: Fix drift — check it is non-contradictory and in sync with project modules.
• Scope rules by folder — extract backend rules into a nested petclinic-backend/AGENTS.md that loads only there.
• Prevent .md drift — replace AGENTS.md’s ## API Endpoints with a pointer to the in-sync openapi.yaml.
• AGENTS.md: Reference drift-safe knowledge — replace the list of REST Endpoints in AGENTS.md with a link to the in-sync openapi.yaml.
• Create a skill — move ### Java Code Style from AGENTS.md into a java-code-style/SKILL.md. Test it activates ±eval on 3 runs.
• Turn skill into rule: Turn the Java Code Style skill you extracted into a .claude/rules/java-rule.md that is loaded 100% before any .java file is edited.
• Hooks – create a hook that plays a sound when the agent finished its turn or waits for your answer/approval.
• Scripted guardrail – remove the rule about < 120 chars and try to manually violate it

Petclinic Tasks

The tasks below have the pattern: **** –

• ⭐BE+FE feature – Improve the owner search (Issue #24), then optionally review the code
• Fix BE+FE bug – Fix missing visit date validation (Issue #40): reproduce it in a browser, write a failing Playwright e2e test, then fix the bug so the test passes
• Fix UI layout – align the labels and values in the owner details screen via Playwright screenshots
• Regenerate the user manual — /regen-user-manual
• Latency study — break down the time budget of a “search owners” click from recorded Grafana traces - where is most time lost?
• SQL — export an Excel pie chart of the pet types querying postgres-db, and open it when ready.
• Query tuning — optimize the “search owners by last name” flow.
• Tuning tests — speedup the backend tests (takes lots of time & tokens).
• Exploratory QA — download the Playwright test agents and explore the app to write 10 significant automated .feature e2e tests
• Grafana dashboard — create a dashboard of what to monitor, then open it (start Grafana’s Docker if needed).

Some tasks above require tools from the project’s .mcp.json, which should autoload when you start the agent in this folder.

Tools

Start YOUR agent in YOUR🫵 work project and tell it:

“Help me grant you access to:…”

• Issues — fetch the issues assigned to me on this git repo, put a test comment on the last one
• CI — find out how much time the tests took in the last CI run
• Logs — get the last errors from the dev environment log
• Browser – reproduce a recent FE bug in a browser
• DB - which database tables have the most rows in my dev DB?
• Metrics - What is the endpoint with the highest latency in Grafana?
• Token Saving - Configure me headroom or at least RTK to save tokens.

Patiently guide the agent through this setup, then tell it: Turn the lessons you learned into a reusable skill, ideally scripting as much work you can.

Tools for Agentic Lifestyle

• WisprFlow to dictate.
• CodexBar and/or AgentsView to monitor the remaining Claude/Codex/Copilot quota/usage.
• ScreenBrush to draw on screen before a screenshot to agent.
• WalkieTalkie to speak and point/crop/move/select/copy/record.
• Victor’s status line for Claude Code and Copilot CLI: per-turn cost, quota burn-rate, prompt-cache health, suspend until quota refills
• Human Review - helper suite to review AI-gen PRs effectively

Ideas to adopt into your own project ❤️

Start an agent in your project and prompt it: From the https://github.com/victorrentea/petclinic repo adopt…

• packages.puml kept in sync with code structure via tests.
• DomainModel.puml generated from code via reflection.
• ConceptualModel.drawio.png unit-tested vs code using reflection.
• DB.puml built from from the incremental DB scripts.
• In-sync Backend Java REST API openapi.yaml frontend api-types.ts.
• Agent auto-fixes the CI after any push.
• Running critical tests before every push (githooks/) and again in CI (workflows/).
• CODEOWNERS file to protect critical files behind tech-lead/architect review to prevent dev fatigue-LGTM.
• Gherkin .feature tests - write 3 for the most critical flows of my app
• Generate sequence diagrams from selected e2e tests, as in petclinic-test/generated/*.genseq.puml.
• assemble a reviewer’s guide for a change set — as in https://github.com/victorrentea/human-review

Architecture diagrams

Every diagram is generated from the code and rendered live via the PlantUML proxy off the GitHub-hosted .puml source — each carries a footer with its own repo path, so the render is self-identifying.

The two .drawio.png diagrams are the exception: drawn by hand, but not therefore unchecked — the mxGraph XML rides inside the picture, and a guardrail test reads it back and compares it against the code.

Deployment (FE → BE → DB)

Hand-drawn, and it has to be: the backend cannot introspect the Angular SPA or PostgreSQL. It stays honest anyway — it is a .drawio.png, so the mxGraph XML rides inside the picture (open it in the draw.io desktop app and edit it in place), and every box and arrow carries metadata that DeploymentDiagramTest checks against the sequence diagrams generated from real traces.

Domain model

Conceptual model (hand-arranged)

The same concepts and links as above, but laid out by people and staying where they were put — which is the whole point, since PlantUML re-arranges its own diagram on every regeneration and resets everyone’s spatial memory of it. ConceptualModelDiagramTest owns the content (every box, line and cardinality must match the domain classes) and never the positions; a new concept is parked in the staging lane on the left by docs/scripts/conceptual-model-patch.py and keeps the build red until a human places it.

Database (ER)

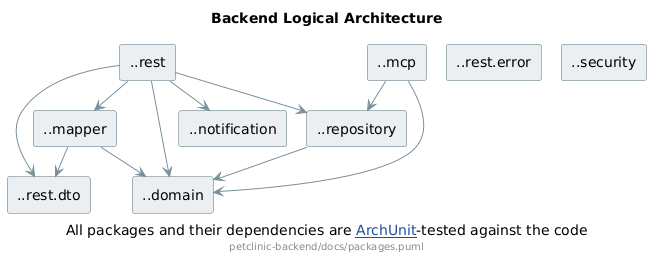

Packages (logical architecture)

E2E sequence (from real traces)

C4 — System Context

More C4 views (containers, per-component focus) live in petclinic-backend/docs/README.md.
